Series 500 | AWWA C-504
Size: 75mm (3") to 500mm (20")
End Connections: Flanged / MJ
Body Materials: Cast Iron, optional Ductile Iron
Pressure Rating: AWWA Class 150 & 250B
Options: Fusion Bonded and Epoxy coatings are available
Features: Bidirectional seating for 200 PSIG standard on 150 PSIG rated valves, One piece through stem, Full encapsulated vulcanized seat, NSF certified
Series 47
Size: 600mm (24") to 2400mm (96")
End Connections: 150 / 250 Flanged / MJ
Body Materials: Cast Iron, Ductile Iron, Fusion Bonded Epoxy Inside and Outside
Disc Material: Ductile Iron with Stainless Steel Edge
Pressure Rating: 150 / 250
Options: Adjustable and Retained Packing
Typical Applications: Buried Service, Pump Isolation, Pump Control, In-Plant

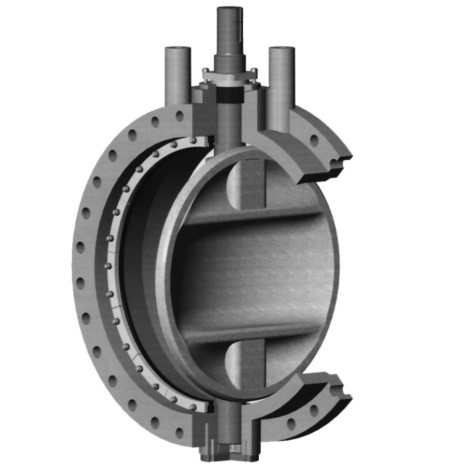

Series L2 | AWWA C-504
Size: 600mm (24") to 4200mm (168")
End Connections: Flanged / MJ
Body Materials: Cast Iron, optional Ductile Iron
Pressure Rating: AWWA Class 150 & 250B
Options: Fusion Bonded and Epoxy coatings are available
Features: Recessed trunion incorporated packing retaining device, Full encapsulated recessed seat mechanically retained, Bidirectional adjustable, Non-metallic journal bearings & dual thrust bearings, High capacity low pressure drop flow through disc starting at 600mm, NSF certified
